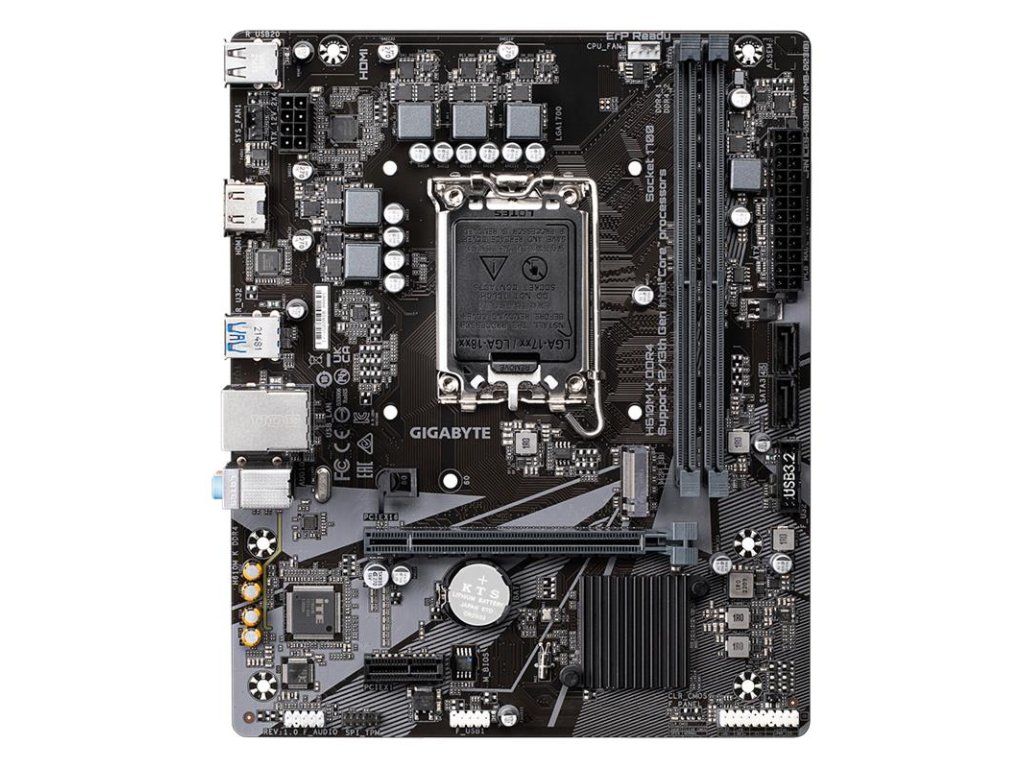

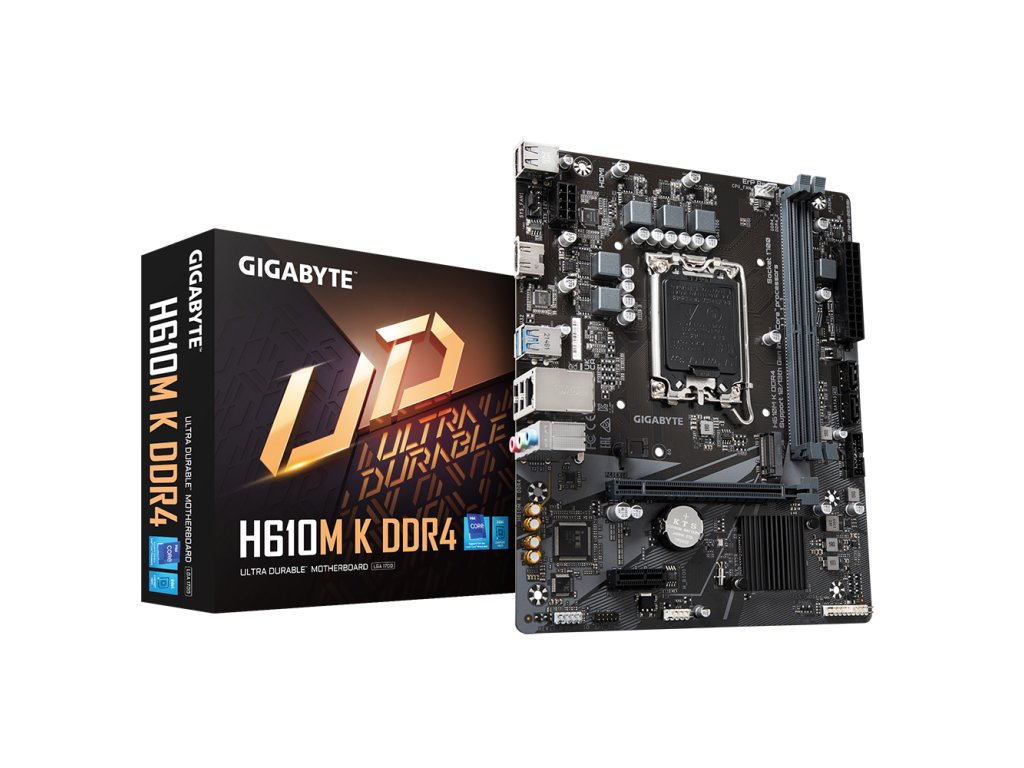

Gigabyte H610M K DDR4, Intel H610, LGA1700, 2xDDR4, mATX/ PN:

Podrobný popis

PCIe 4.0* Design, Gen3 x4 M.2, GbE LAN, Anti-Sulfur Resistor, Smart Fan 6

Supports 13th/12th Gen Intel® Core™ Series Processors?
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs?
GbE LAN with Bandwidth Management?
NVMe PCIe 3.0 x4 M.2?
High Quality Audio Capacitors and Audio Noise Guard?
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP?
GIGABYTE APP Center, Simple and Easy Use?
Anti-Sulfur Resistors Design?



CPU
LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
Chipset
Intel® H610 Express Chipset
Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
2 x SATA 6Gb/s connectors
USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper
Back Panel Connectors
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
